The Bentley 3500 series is an online monitoring and protection system launched by GE Bentley Nevada, widely used in the condition monitoring and protection of large rotating equipment. Here is a detailed introduction:

Scope of application: Suitable for TSI system of large thermal power turbine units, monitoring system of water turbine units, as well as monitoring, protection and analysis of large rotating equipment such as main compressors in the petrochemical industry, blast furnace fans, sintering main exhaust fans, TRT in the steel industry.

Product Features:

Equipped with self detection and fault-tolerant design, it can be configured with multiple redundancy methods, ranging from adding a second fully redundant power supply to a complete triple modular redundancy (TMR) configuration, which can be used for selected channels or all channels to meet critical task applications.

It can seamlessly connect with the Bentley System1 status monitoring and diagnostic analysis software platform.

Communication with factory control and automation systems can be achieved through the communication gateway module.

The design complies with the American Petroleum Institute standard API 670 and the reciprocating compressor application API 618 standard, and has been certified by DNV and Class NK certificates in the offshore application field, as well as certifications from the Canadian Standards Association (CSA), Factory Mutual Assistance (FM), GOST, ATEX, and CE.

System composition and functions:

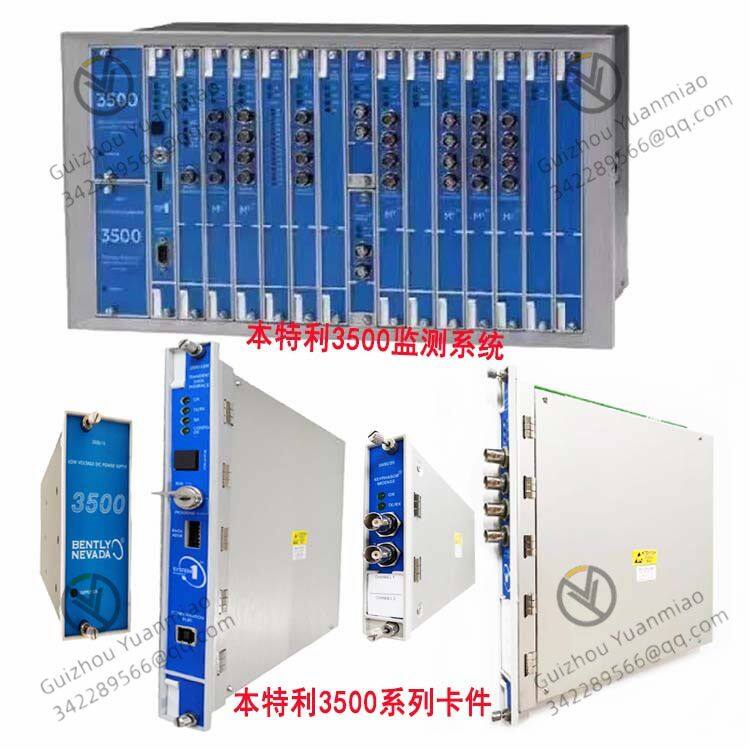

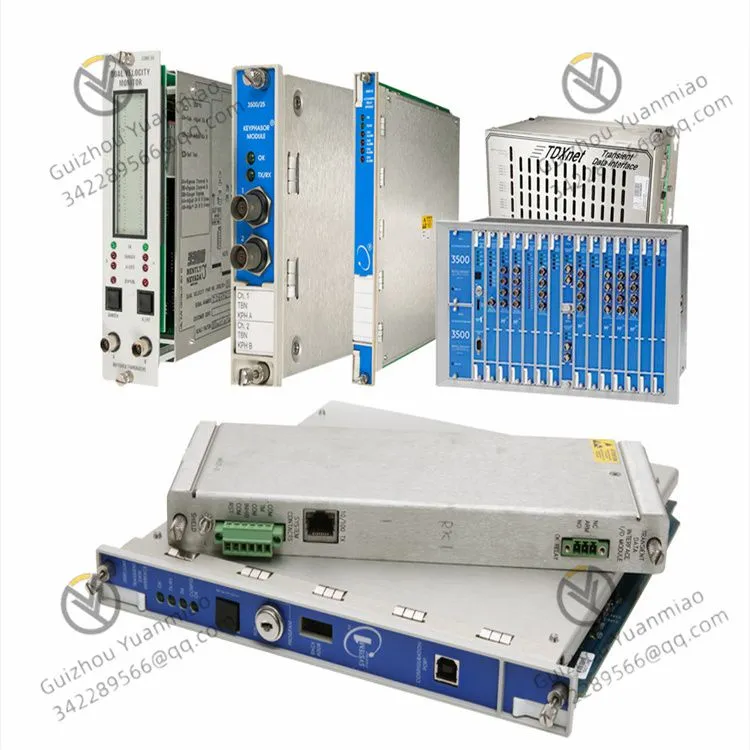

3500/01 Framework Interface Module: Used to connect sensors and monitoring systems, it is the interface for the system to interact with external devices.

3500/15 power module: provides power support for the system to ensure stable operation.

3500/22M Transient Data Interface Card: Used for communication with System 1 mechanical management software to achieve data transmission and analysis.

3500/40M Displacement Monitor: A configurable 4-channel monitor module used for radial vibration, axial displacement, eccentricity, REBAM, and differential expansion measurements.

3500/42M Vibration Axial Displacement Card: In addition to all the functions of 3500/40M, it can also receive input types of speed, acceleration, and dual probes (speed and displacement) and their related signal adjustments, such as filtering and integration.

The highly modular design of the 3500 system includes:

3500/05 Instrument frame (necessary)

Or two 3500/15 power supplies (necessary)

3500/22M Transient Data Interface Module

Or 3500/20 framework interface module (necessary)

Or two 3500/25 key phase modules (optional)

3500 Framework Configuration Software (Necessary)

One or more 3500/XX monitor modules (necessary)

One or more 3500/32 relay modules or 3500/34 triple redundant relay modules (optional)

One or more 3500/92 communication gateway modules (optional)

3500/93, 3500/94, or 3500/95 display devices or 3500 operator display software running on compatible PCs (optional)

Internal or external intrinsic safety barriers, or electrical isolation devices for installation in hazardous areas (optional)

3500/53 overspeed detection module: used for mechanical overspeed protection. When the equipment speed exceeds the set value, it will promptly issue an alarm and take protective measures.

3500/62 TSI Turbine Monitoring Module: specifically designed for vibration monitoring of steam turbines, designed and optimized for their operational characteristics.

3500/64M system accessory module: used for system expansion and configuration, can add system functions and modules according to actual needs.

In general, the Bentley 3500 series can obtain real-time equipment operation status information through continuous online monitoring, timely discover potential faults and hidden dangers, provide strong guarantees for the safe and stable operation of equipment, and help users reduce maintenance costs and improve production efficiency.
