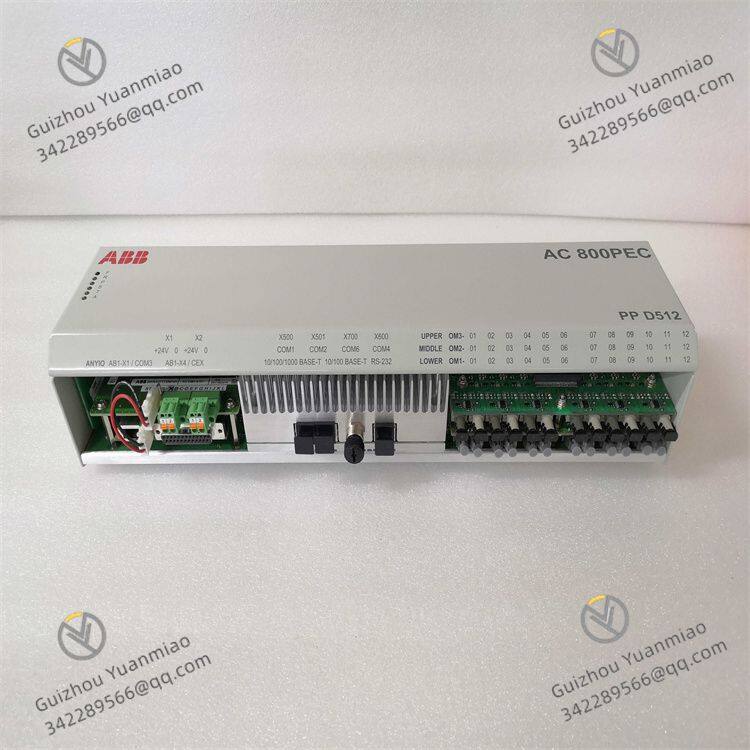

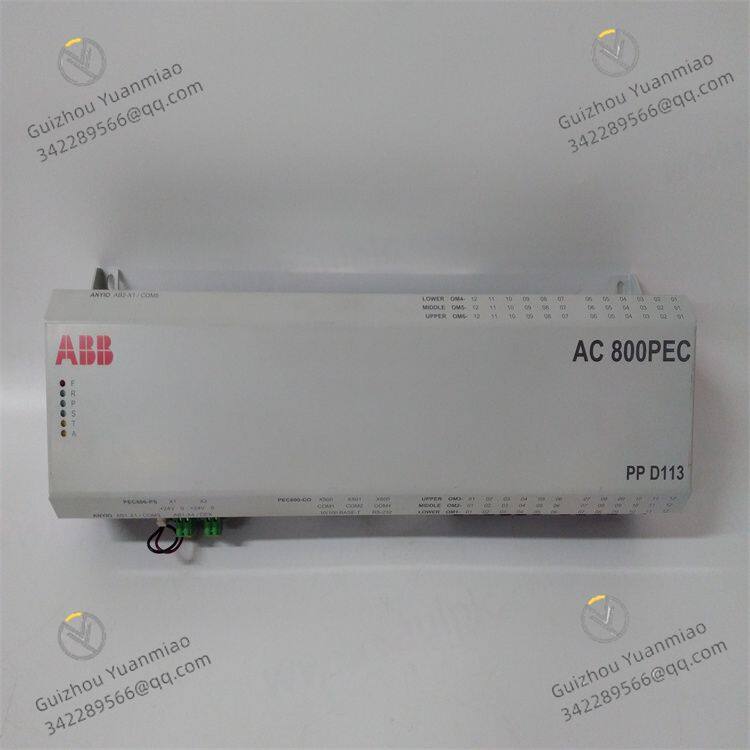

The ABB PEC series mainly refers to the full range of AC 800PEC controllers

ABB's PEC series mainly refers to AC 800PEC, which is a high-performance control system. The following is its detailed introduction:

characteristic:

High speed processing capability: With a short cycle time of up to 100 μ s, it can handle high-speed algorithms for power electronics applications and is suitable for high-performance applications with extremely fast control algorithms.

High processing capability: Using a dual core processor unit, high-speed control is combined with low-speed process control tasks typically performed by separate PLC units.

Fast communication: Fast communication and I/O are achieved through optical links, with high resistance to electromagnetic interference, no potential connection, and isolated transmitters.

Rich programming tools: Use ABB's Control Builder for system engineering in IEC61131-3 language, with two versions available: compact and professional; Simultaneously, product and control development can be conducted using MATLAB ®/ Simulink ®  Conduct model-based design to easily bridge the gap from simulation to implementation.

Strong system integration: fully integrated into ABB Ability ™  System 800xA， It can achieve seamless integration and collaborative work with other systems.

Hardware reliability: Industrial grade hardware without moving parts, with a long lifecycle, easy to upgrade, and a reliable file system that is not affected by power loss.

Flexible use of FPGA: Innovatively and flexibly using FPGA to include protocol and application functions in the device without generating additional processor load.

Performance level: The system is divided into three performance levels, covering different cycle times, and control tasks are allocated according to their speed requirements:

Extremely fast task: as low as 25 nanoseconds (FPGA task is nanosecond).

Fast task: as low as 100 μ s (Matlab/Simulink tasks are in microseconds).

Slow task: as low as 1 millisecond (control task is in milliseconds).

Communication function: Supports multiple communication protocols, including Modbus TCP slave of the local machine (depending on configuration), IEC61850, ABB fast fiber link ABB drive bus（DDCS）、IbaPDA、 The optical module bus (S800), CANopen, and other protocols such as Profibus DPV1, Modbus RTU, Masterbus 300 can also be used through additional components to meet the communication needs between different devices and systems.

Application areas: AC 800PEC is suitable for various demanding industrial application scenarios, such as petrochemicals, power energy, automotive manufacturing, and water treatment. It can achieve motor control, equipment monitoring, and production line automation management. In terms of aluminum applications, communication between the unit controller and the main controller can be achieved through PEC-PEC fiber optic link communication, which has functions such as emergency operation and predictive maintenance; In the application of electric arc furnaces, stable arc detection, different control modes, and fast connection with power quality systems can be achieved.
