ABB Controller/Module Model List

ABB controller/module model list, covering multiple series of products, with different models corresponding to different functions, parameters, and application scenarios. The following classification analysis:

1. Typical series identification

PM800 series: such as PM803F, PM803, PM801, belong to basic/universal controllers, commonly used in small and medium-sized automation control, supporting basic logic control, data acquisition, and adapting to simple production lines and equipment unit control.

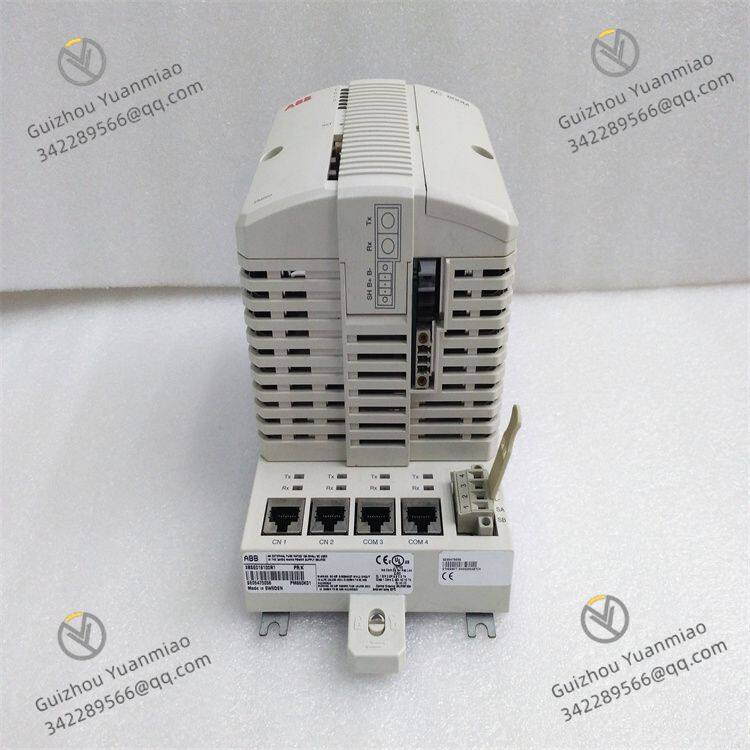

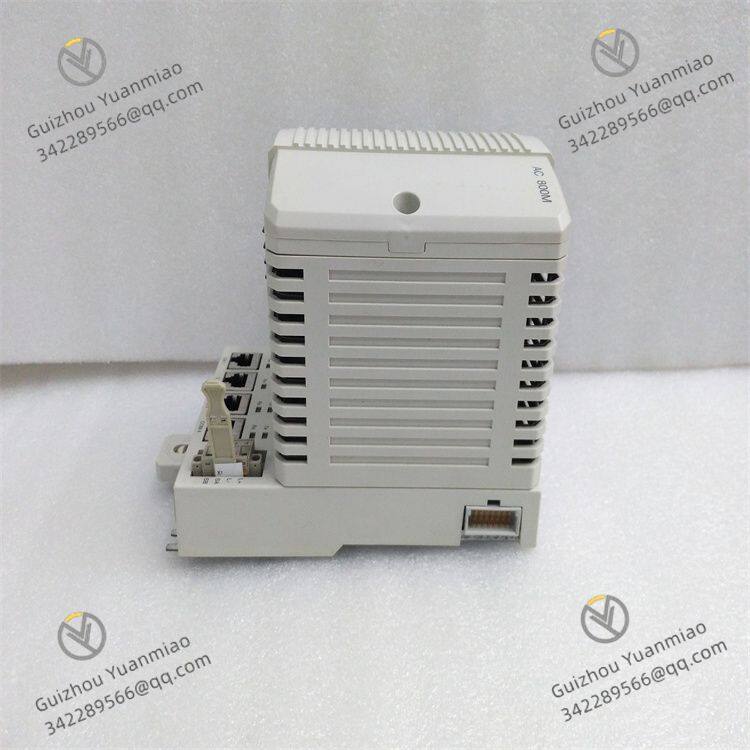

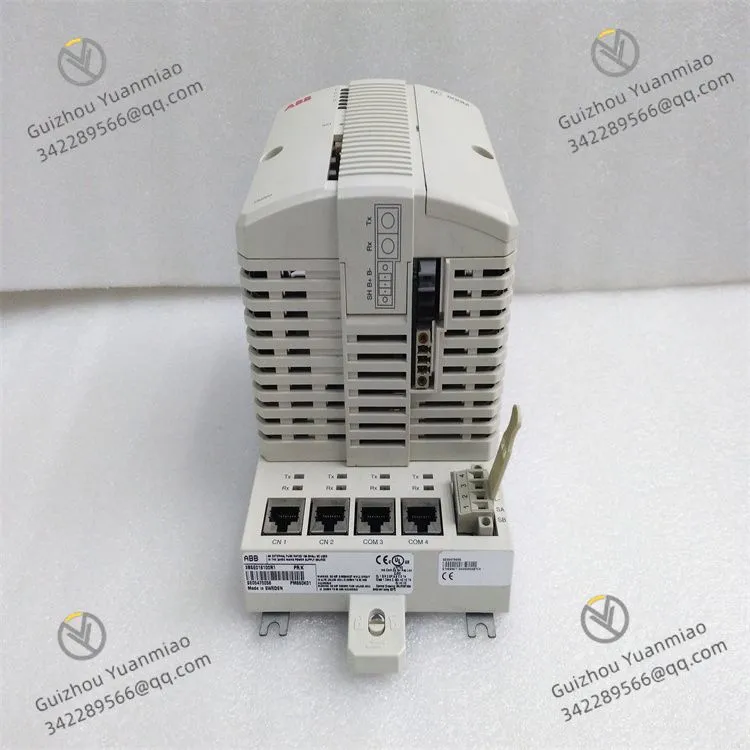

PM850/860 series: such as PM858K01, PM860K01, PM864, are mostly high-performance/scalable, with stronger computing and communication capabilities, suitable for complex systems (such as chemical processes and smart factories), supporting multi protocol integration and redundant control.

PM900 series: such as PM904F, tends to be high-end/customized, targeting high reliability and high complexity scenarios (such as power dispatch and large-scale heavy industry), and may integrate AI algorithms and deep diagnostic functions.

2. Model coding logic (taking some examples)

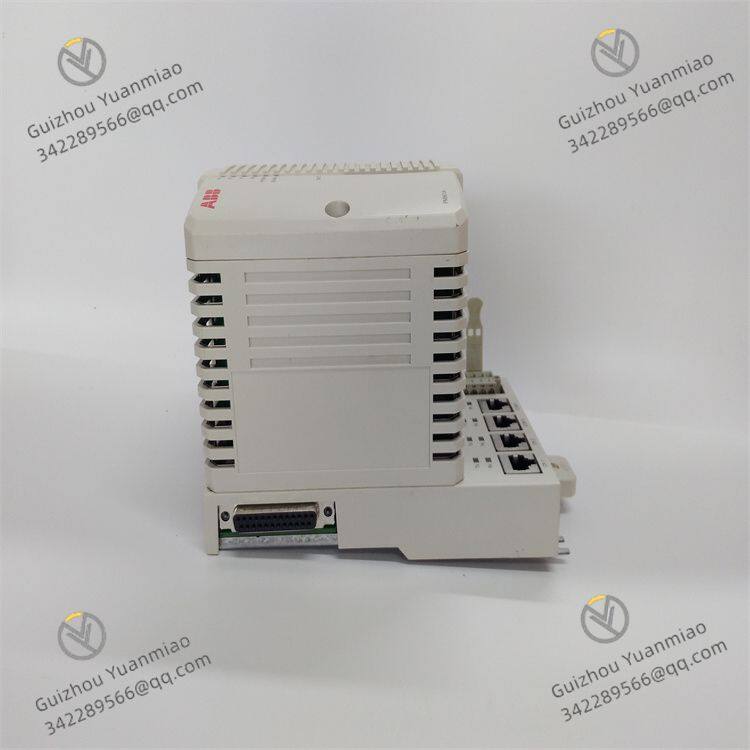

PM861AK01, PM866K01: "AK01" and "K01" may be configuration suffixes, distinguishing hardware versions (such as memory, interface expansion) and software adaptation (specific protocols/feature packages), and details need to be confirmed in conjunction with the manual.

With 3BSE... code: such as PM825 3BSE010796R1, "3BSE" is the prefix for ABB product material code, used for internal production, inventory management, and associated with complete technical documents (drawings, parameter tables).

3. Application scenario orientation

General Industry: PM803F, PM825, etc., covering mechanical manufacturing, light industry (food/textile), doing production line logic control and equipment linkage.

Process industry: PM858K01, PM866 series, suitable for chemical and energy industries (such as power plants), requiring high-precision process control (temperature and pressure regulation) and fault redundancy.

Customized projects: PM904F (including BDH... code), models with special suffixes, may be customized for industries such as ships and rail transit, to meet extreme environments (high vibration, wide temperature range) or exclusive protocol requirements.

The model/material list of ABB controllers and accessories, covering the main module, housing, interfaces, etc., is classified and disassembled as follows:

1. Core module (controller body)

PM511V16 series: such as PM511V16 3BSE011181R1, belongs to the basic programmable logic controller (PLC), "V16" may be associated with I/O points and functional versions, suitable for small automation scenarios (such as single machine equipment, simple production line control).

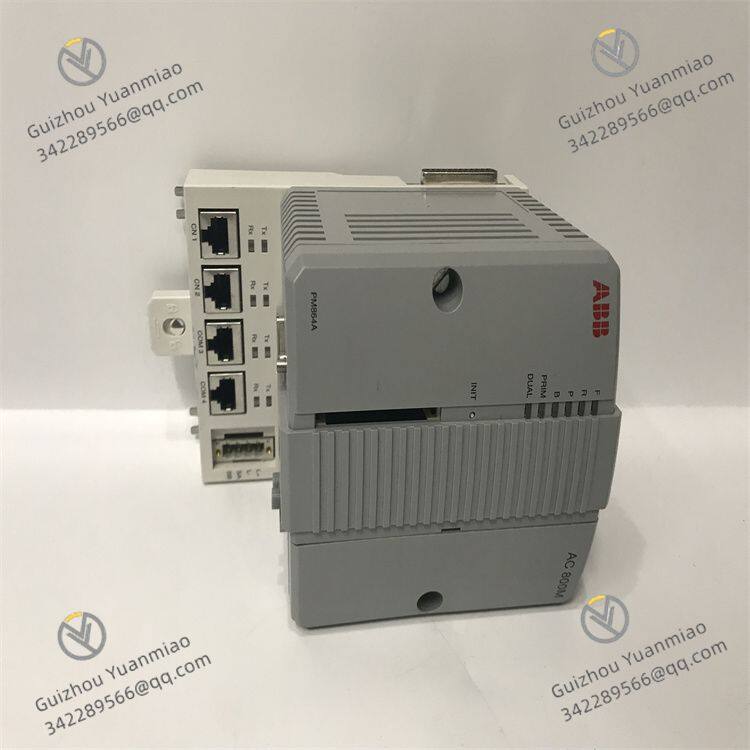

PM864 series, such as PM864AK01 3BSE018161R1 and PM864AK02, are high-performance controller modules. "AK01/AK02" is a configuration suffix (distinguishing hardware versions and functional extensions), commonly used in complex systems (such as smart factories and process industries), supporting multi protocol communication and high-speed computing.

PM866 series: such as PM866 3BSE050200R1, PM866K01 3BSE050198R1, positioned as high-end/expandable, with stronger redundancy design and diagnostic capabilities, suitable for high reliability scenarios (such as power and chemical production lines), and can integrate AI algorithms and deep data processing.

2. Accessories/Supplementary Materials

Shell type: PM866A shell, PM864A shell, PM511 series front cover, are physical protective parts of the controller, used for module installation, dust and moisture prevention. Different models correspond to different sizes/compatible modules.

Interface related: PM511V16 interface, which may refer to the communication/IO interface components of the module, ensuring signal connection and protocol adaptation (such as Ethernet and serial port expansion).

3. Encoding rules and purposes

3BSE... R1: ABB product material code, used for production and inventory management. Each code is associated with a unique technical document (parameters, drawings, compatibility instructions), and details can be confirmed by checking the official manual through the code.

AK01/AK02: Module configuration identification, which may distinguish hardware versions (such as memory size, number of interfaces), software functions (including specific protocol packages, redundant licenses), and selection should match project requirements.

4. Application scenarios

Small scale automation: PM511V16 series+basic shell/interface, used for single machine equipment and simple production lines (such as packaging machines and conveyor belts).

Medium to large scale systems: PM864/866 series+customized casing/interface, suitable for smart factories (multi device linkage) and process industries (chemical/power, requiring high-precision control+redundancy).

If precise parameters are required (such as I/O points, communication protocols), it is recommended to use the model+3BSE code to check ABB's official technical library, or contact the supplier to match project requirements
