User Manual for Triconex Triple Redundancy Control System

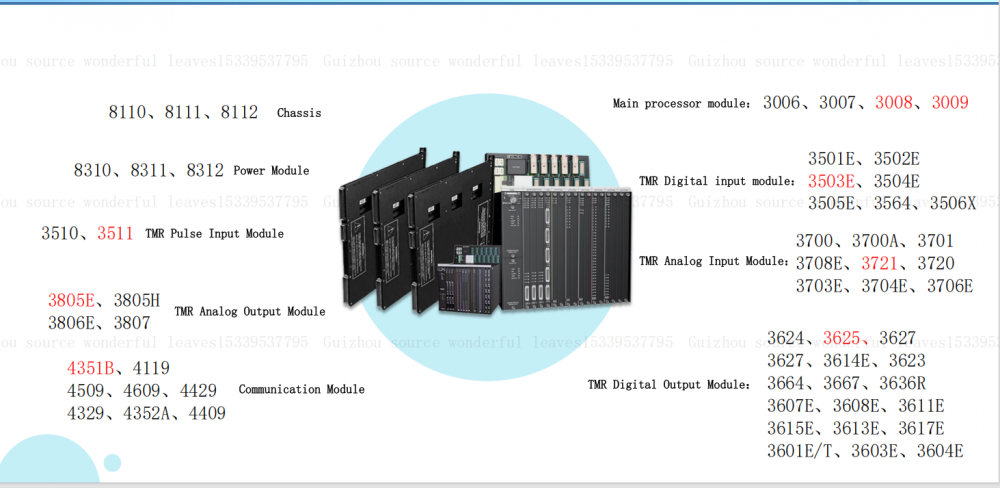

The hardware module list of Triconex (Triple Redundancy Control System), a brand under Emerson that focuses on high safety industrial control, is primarily used for SIL3 level (Safety Integrity Level) safety control systems in petrochemical, nuclear power, and other industries, such as emergency shutdown ESD and safety interlock SIS. The following categories are disassembled:

1、 Core components of system architecture

1. Chassis rack

8110, 8111, 8112: The hardware carrier of the Triconex system is used to install modules such as CPU, power supply, I/O, etc. It is fixed by rails/card slots to ensure electrical connections and physical support between modules. Different numbers correspond to rack sizes (such as slot numbers and installation depths), and are compatible with control systems of different scales.

2. Power Module

8310, 8311, 8312: Supply power to the entire Triconex system, using redundant design (multi module backup) to ensure that the system can still operate for a short period of time (or seamlessly switch to backup power) in the event of a power outage, adapting to voltage fluctuations and instantaneous power outage risks in industrial sites.

2、 Control core: Main Processor Module

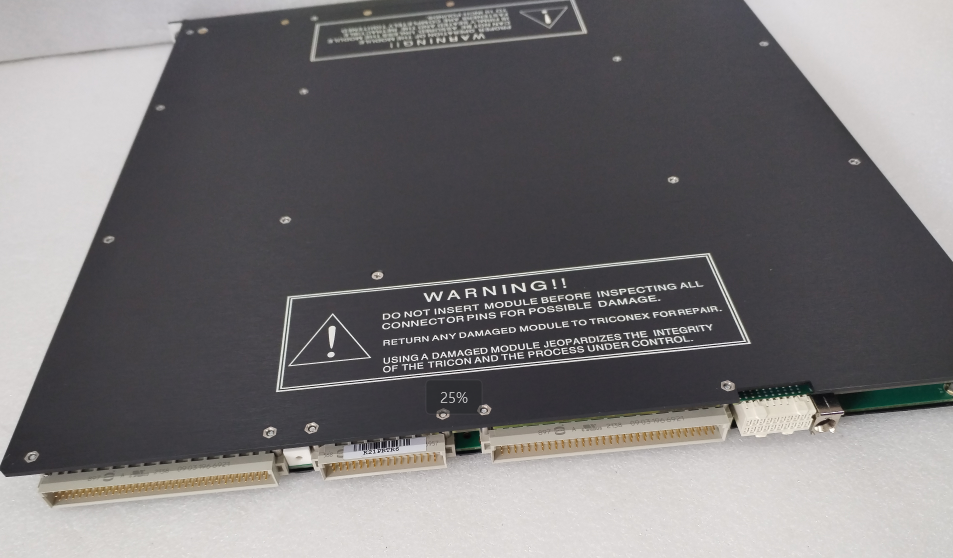

3006, 3007, 3008, 3009: The "brain" of the Triconex system is based on the Triple Redundancy (TMR) architecture, with three independent CPUs synchronously computing and comparing results to ensure error free output in case of failure.

Function: Processing safety logic programs (such as overpressure shutdown logic for petrochemical plants), real-time acquisition of I/O signals, driving control outputs, meeting the "fault safety" requirements of high safety scenarios.

3、 Input/Output (I/O) Module

The Triconex I/O modules are all designed with TMR (triple redundancy), which collects/outputs signals through three independent channels, mutually checks for fault tolerance, and ensures reliable signals under extreme working conditions

1. TMR Digital Input Module

3501E, 3502E, 3503E... 3506X: Collect on-site switch signals (such as valve opening and closing, button status), adapt to dry contact and wet contact inputs, commonly used for equipment status monitoring and safety interlock triggering (such as emergency stop button signal access).

2. TMR Analog Input Module

3700, 3700A, 3708E... 3706E: Processing continuous signals (such as 4-20mA/0-10V signals for pressure, temperature, and flow), with built-in signal conditioning circuits to ensure high-precision acquisition, used for process parameter monitoring (such as petrochemical pipeline pressure monitoring).

3. TMR Digital Output Module

3624, 3625, 3601E/T... 3604E: Output switch control commands (such as driving relays, solenoid valves) to achieve equipment start stop and valve action. Redundant design ensures reliable execution of commands (such as precise action of safety valves during emergency shutdown).

4. TMR Analog Output Module

3805E、3805H、3806E、 3807: Output analog control signals (such as 4-20mA drive regulating valves) for continuous process control (such as temperature regulation of chemical reaction vessels), with redundant channels ensuring uninterrupted signal transmission.

4、 Special function module

1. TMR Pulse Input Module

3510, 3511: Collect high-speed pulse signals (such as encoder speed pulses) for equipment speed monitoring and positioning control (such as nuclear power fan speed interlocking). TMR design ensures accurate pulse counting and avoids misjudgment.

2. Communication Module

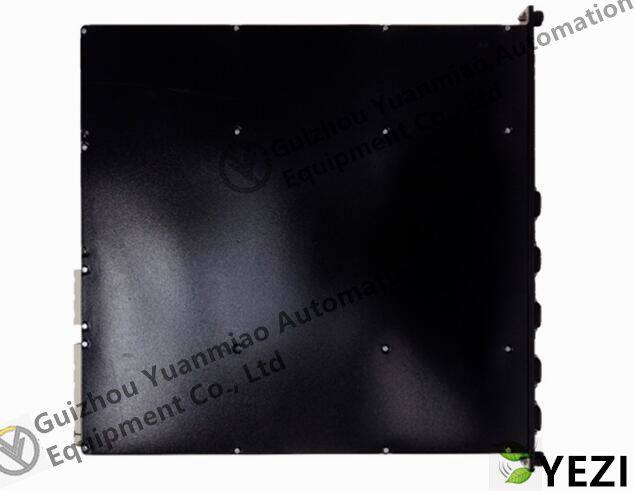

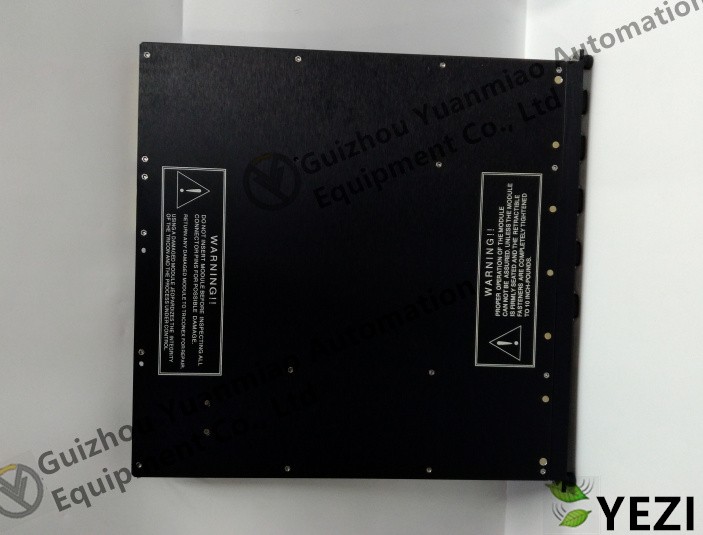

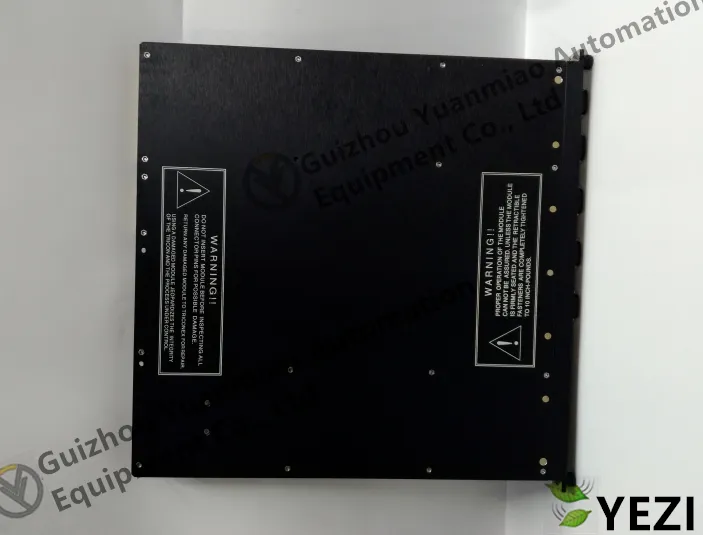

4351B、 4119, 4509... 4409: Implement data exchange between Triconex system and upper computer (such as DCS, SCADA), other control systems, support industrial buses such as PROFINET, Modbus, Ethernet, etc., ensure safety logic and coordination with the entire plant control system (such as data sharing between petrochemical plant ESD and DCS).

5、 Industry Applications and Value

The Triconex system is designed for high-risk industrial scenarios due to TMR redundancy and SIL3 certification

Petrochemical industry: Emergency Shutdown System (ESD) in refineries and chemical plants, which quickly triggers valve closure and equipment shutdown when exceeding the time limit to avoid explosion and leakage accidents.

In the field of nuclear power, the nuclear island safety control system monitors reactor parameters (such as temperature and radiation) and executes safe shutdown in case of abnormalities.

Rail transit: Train signal interlocking and braking system to ensure safe operation.
